quickly removable seat pin / QRS modification DIY

Postby Blackstridaaustria on Wed Apr 06, 2011 4:26 pm

Hello Strida fans,

this modification is intended for people, who want to share their (ST-QRS-001 equipped) Strida temporarily with another person of greatly different body height.
A body height of 1,45 - 1,75m requires the lower position of the seat pin and a height of 1,75 - 1,93 m the higher position.

The changing of the seat pin to another (upper or lower) position requires usually the un- and remounting of the saddle, the carrier and the complete "quick" release seat molding. :roll: :?

A new designed seat pin (containing a magnet), together with a few simple mods on the seat molding solve the problem... :D
The material costs are below 1 €, most expensive part is the magnet (0,22 €/each).
Weight of magnet 0,32 g, magnetic force 350 g (~50 x weight of the seat pin), from here:
http://www.supermagnete.de/eng/S-03-06-N

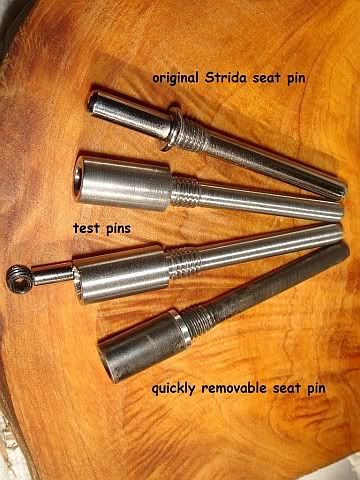

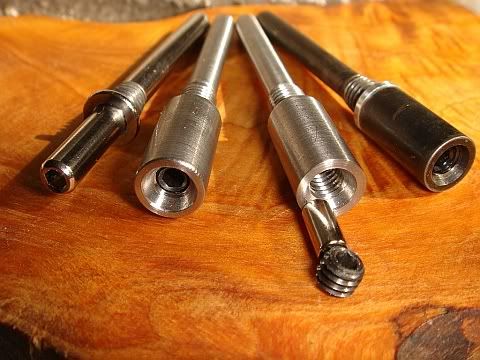

The pins:

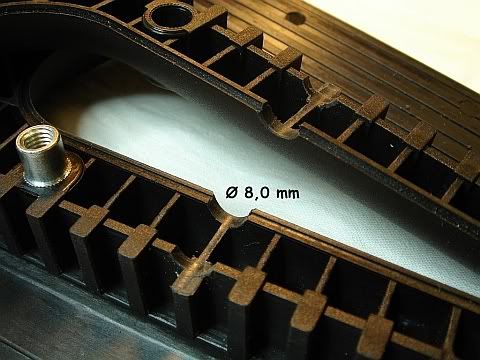

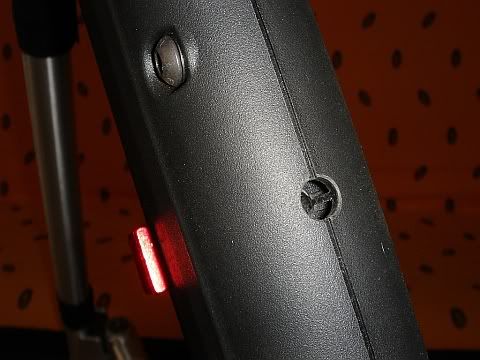

Required mod on the seat molding (wood drill, low rpm):

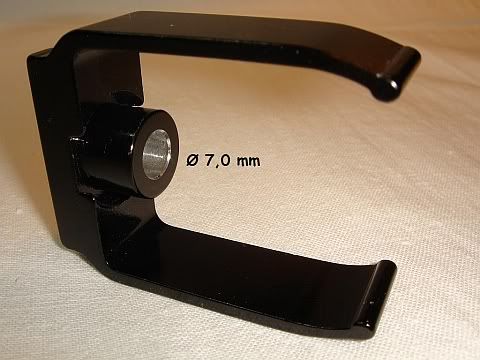

Required mod on the QR locking mount (metal drills in 1 mm steps, mid rpm):

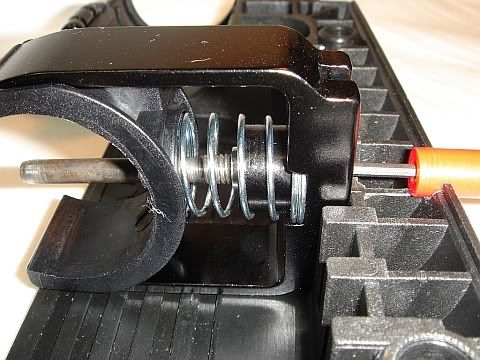

Function of the helping "tool" (plastic roll):

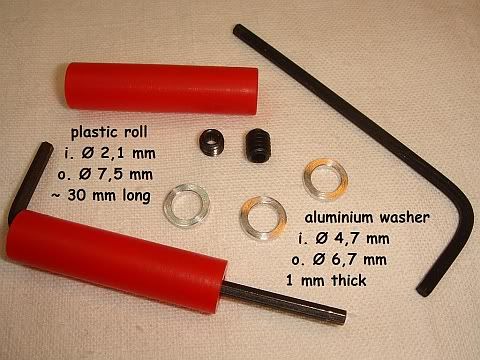

The "tool" and the small parts:

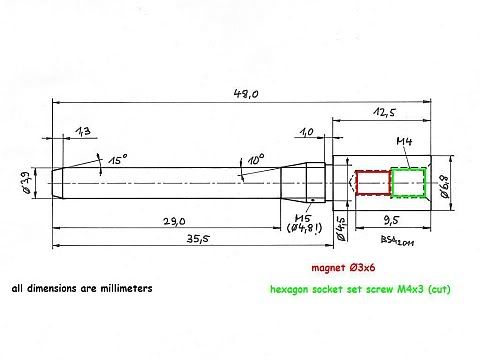

Design drawing, material: free cutting steel - every lathe operator will know what's that :wink:

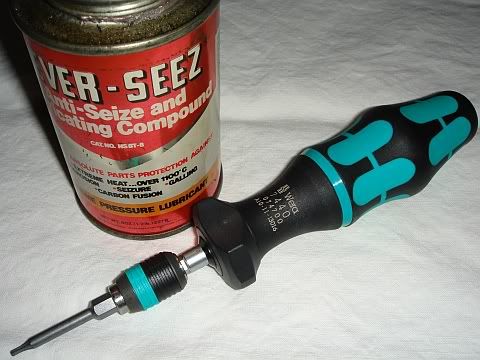

Strongly recommended: The use of anti-seizing compound and torque allen screw driver.


http://www.neverseezproducts.com/bostik.htm
http://www.wera.de/

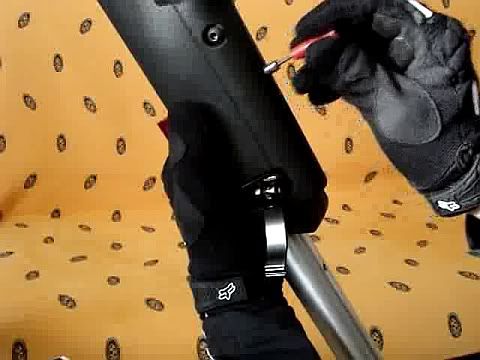

Function video (44 sec. 2,6Mb):

http://s769.photobucket.com/albums/xx331/Blackstridaaustria/QRS%20mod/?action=view&current=MOV02344_002-1.mp4


More info about this topic to be found here:

viewtopic.php?f=2&t=2966#p4978
viewtopic.php?f=2&t=3024#p5129

Please note: There are no spare parts for the QRS system available.
Damaging one part means you have to buy a complete new QRS set!

More tricks gladly by request...
...better pics are here:

http://s769.photobucket.com/albums/xx331/Blackstridaaustria/Strida%20QRS%20quickly%20removable%20seat%20pin%201024/

W. r.
STV@gmx.org
StridaTuningVienna

"Who knows nothing, must believe all." *

[* line from "Aphorismen"; Marie von Ebner-Eschenbach, Austrian poet, 1893]
