Problem with Big Apple 16"

Postby Francesco91 on Mon Jan 14, 2013 3:16 pm

Hi I have a problem with Schwalbe Big Apple 16x2.00, I've mounted them on a Strida LT 2012 16" wheel rim.
It's all good exept the tire doesn't fit perfectly in the rim, infact the rim goes off the reinforced rubber of the tire in some points and this caused the tire to break after a while.
I can't see anyway to make it fit properly and I want to know if someone had this problem before

here are some pics of the damage and a new tire mounted

Thanks for the help
Francesco91

Posts: 5
Joined: Mon Jan 14, 2013 2:44 pm

Re: Problem with Big Apple 16"

Postby Blackstridaaustria on Mon Jan 14, 2013 5:05 pm

Hello Francesco91,

indeed a known problem:
Strange tire problem with LX rim

you might powder tube and tyre beads with talcum, sometimes is inflating above the maximum pressure helpful.
Please be careful, there is a pressure limit for the Lt rims (sorry, can't find it at the moment).

The primary problem is that the LT rims do not really match to tyres of that extreme size;
the original 16 inch rims are slightly more wide (a few tenth mm).

Minutes ago I've tried to mount a Big Apple on a LT wheel and had exactly the same problem like you, but it was no problem to use these tyres on Alex Y303 (about 4 mm more wide than original rims).
STV@gmx.org
StridaTuningVienna

"Who knows nothing, must believe all." *

[* line from "Aphorismen"; Marie von Ebner-Eschenbach, Austrian poet, 1893]
[* book title; Werner Gruber, Austrian physicist, 2010]
User avatar
Blackstridaaustria

Posts: 1410
Joined: Mon May 24, 2010 8:44 pm
Location: 48.20938,16.370287

Re: Problem with Big Apple 16"

Postby Francesco91 on Mon Jan 14, 2013 6:08 pm

Thanks Blackstridaaustria for your reply,
I've tried everything I could to make it come out properly: pomped till 8 bar (max is 5 bar) and a lot of soap but it didn't work.
I'm thinking about changing the rim or trying another tire that is similar to the schwalbe big apple,
could you please suggest me some different rims and tires that will work?

Thank you very much for your help anyway.
Francesco91

Posts: 5
Joined: Mon Jan 14, 2013 2:44 pm

Re: Problem with Big Apple 16"

Postby Blackstridaaustria on Mon Jan 14, 2013 9:10 pm

Gladly, you're welcome :D

Just tried to mount a Schwalbe Marathon 16 x 1,75 on LT wheel - same problem :roll:

Francesco91 wrote:I'm thinking about changing the rim...


Guess you mean to change the wheels as a whole?
LT wheels are one piece molded...

Like several other Striders I was interested to try wide tyres (and solve corresponding folding problems),
but I've switched soon to home brewn wheels...
...therefore, I'm sorry, I can not ensure which size of tyre might work with original (24 spoked) 16 inch Strida wheels.

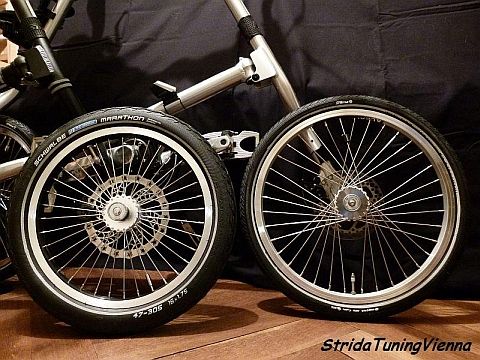

But I can assure that the tyres Schwalbe City Jet 16 x 1,95, Schwalbe Big Apple 16 x 2,0 and the Schwalbe Marathon 16 x 1,75 (below left) actually fit to the used Alex Y 303 rims.
Alexrims / BMX page2


There's already information about wheelbuilding at the forum, please take some time to read it...
...and let me know what you're missing :D
STV@gmx.org
StridaTuningVienna

"Who knows nothing, must believe all." *

[* line from "Aphorismen"; Marie von Ebner-Eschenbach, Austrian poet, 1893]
[* book title; Werner Gruber, Austrian physicist, 2010]
User avatar
Blackstridaaustria

Posts: 1410
Joined: Mon May 24, 2010 8:44 pm
Location: 48.20938,16.370287

Re: Problem with Big Apple 16"

Postby Francesco91 on Fri Jan 25, 2013 2:06 pm

Thanks again and sorry if I dindn't answer, didn't have time theese days.

I will follow your advices and see if i can find a solutions, I will let you know if i do

thanks bye
Francesco91

Posts: 5
Joined: Mon Jan 14, 2013 2:44 pm

Re: Problem with Big Apple 16"

Postby Francesco91 on Mon Jan 28, 2013 2:49 pm

Hi again!
I finally decided to buy those alexrims, so i wanted to ask you where did you buy them and how much did they cost to you, because i can't find the price on their site.
I would be very grateful if you could give me those infos, thank you very much bye.
Francesco91

Posts: 5
Joined: Mon Jan 14, 2013 2:44 pm

Re: Problem with Big Apple 16"

Postby Blackstridaaustria on Mon Jan 28, 2013 5:23 pm

Francesco91 wrote:I finally decided to buy those alexrims, so i wanted to ask you where did you buy them and how much did they cost to you, because i can't find the price on their site.


May I strongly recommend that you first order 18 inch Strida hubs for the planned wheel set?
(You did notice that you need 36 holed hubs for Alex Y303 rims?
16" Strida hubs are 24 holed, you'll also need spokes, nipples and rim band.)
Please let me know... :wink:

Naturally, here's the source list for:

18 inch hubs

the first (radial) set:
http://www.pedalkraft.de/felgen.htm
2 rims 16"/36H 70 €
72 spokes + nipples 28,80 €
2 rim bands 5,90 €
shipping D - A 17 €

the second (radial) set:
16" rims
http://www.dasfaltrad.at/
spokes + nipples
http://www.komponentix.de/

added for the 18 inch wheel sets:
18" Alex Crostini and DV15
http://www.simpsoncycles.co.uk/product.php/2202/birdy_wheel_rim
STV@gmx.org
StridaTuningVienna

"Who knows nothing, must believe all." *

[* line from "Aphorismen"; Marie von Ebner-Eschenbach, Austrian poet, 1893]
[* book title; Werner Gruber, Austrian physicist, 2010]
User avatar
Blackstridaaustria

Posts: 1410
Joined: Mon May 24, 2010 8:44 pm
Location: 48.20938,16.370287

Re: Problem with Big Apple 16"

Postby Francesco91 on Thu Feb 21, 2013 9:20 am

Hi I 've solved the problem by mounting the tires on the strida mas wheels and it fits just fine.

Thank you for all your help anyway bye!!
Francesco91

Posts: 5
Joined: Mon Jan 14, 2013 2:44 pm

Re: Problem with Big Apple 16"

Postby Blackstridaaustria on Thu Feb 21, 2013 9:27 am

Thanks for the feedback!

Maybe you'll show us someday your Strida...

Have a safe ride :D
STV@gmx.org
StridaTuningVienna

"Who knows nothing, must believe all." *

[* line from "Aphorismen"; Marie von Ebner-Eschenbach, Austrian poet, 1893]
[* book title; Werner Gruber, Austrian physicist, 2010]
User avatar
Blackstridaaustria

Posts: 1410
Joined: Mon May 24, 2010 8:44 pm
Location: 48.20938,16.370287

Re: Problem with Big Apple 16"

Postby phey_05 on Tue Jul 01, 2014 9:57 am

Hi,

Anyone find a solution about this problem without buying new rims?

I have the same problem right now. i was not aware about this problem before buying the tires.
phey_05

Posts: 11
Joined: Tue Nov 27, 2012 6:35 pm

Re: Problem with Big Apple 16"

Postby phey_05 on Tue Jul 01, 2014 10:04 am

picture of my strida wheels right now. :(



phey_05

Posts: 11
Joined: Tue Nov 27, 2012 6:35 pm

Re: Problem with Big Apple 16"

Postby Blackstridaaustria on Tue Jul 01, 2014 10:40 am

:shock:
..but that's 16 x 1,5 - correct?
User avatar
Blackstridaaustria

Posts: 1410
Joined: Mon May 24, 2010 8:44 pm
Location: 48.20938,16.370287

Re: Problem with Big Apple 16"

Postby Bietrume on Tue Jul 01, 2014 11:05 am

Check this topic: Marathon Racer tyres and LT plastic rims

The only solution is to apply some soap on the tire beads and pump it up rapidly (with a compressor) to 6..8 bar and then gently reduce the pressure up to the desired value.
Last edited by Bietrume on Tue Jul 01, 2014 11:10 am, edited 1 time in total.
User avatar
Bietrume

Posts: 190
Joined: Tue Sep 14, 2010 2:26 pm
Location: Namur, Belgium

Re: Problem with Big Apple 16"

Postby Blackstridaaustria on Tue Jul 01, 2014 11:09 am

Thanks Bietrume,
I thought to remember that was regarding wider tyres only...
User avatar
Blackstridaaustria

Posts: 1410
Joined: Mon May 24, 2010 8:44 pm
Location: 48.20938,16.370287

Re: Problem with Big Apple 16"

Postby phey_05 on Tue Jul 01, 2014 11:39 am

Bietrume wrote:Check this topic: Marathon Racer tyres and LT plastic rims

The only solution is to apply some soap on the tire beads and pump it up rapidly (with a compressor) to 6..8 bar and then gently reduce the pressure up to the desired value.



thanks!

I have to delay this set-up.
